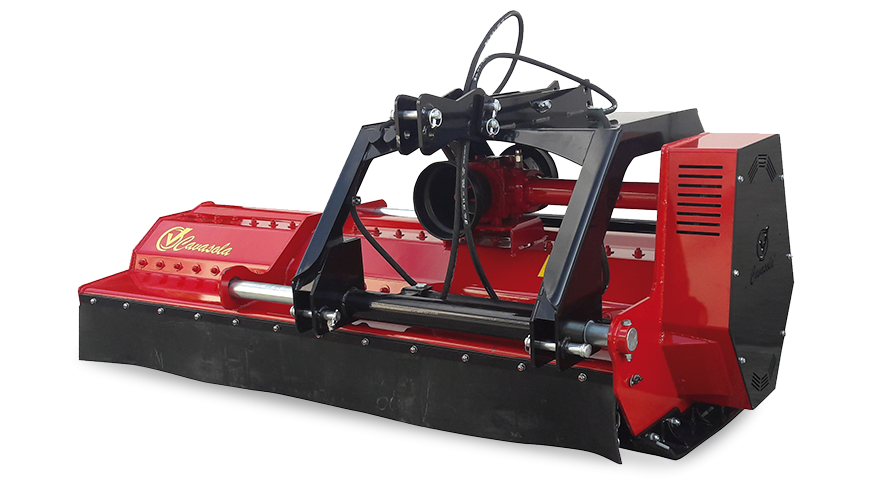

CRUSHER
Standard Equipment
Carbon steel chassis.
Front guard with chain and rubber guard.
Double tower with hydraulic shifting.
Rear roller.
Type G7 and G9 transmission.
Skid plates.
Toothed hammer rotor with M-20 screw.
Group with double crown and 1” 3/8 Z6 and 3/4 Z6 input shaft.
Replaceable breakers.
Belt tensioner.
Double row oscillating roller bearings.
4mm inner subframe with carbon steel sleeve.
Sealed bushing with roller grease nipple.
Rear protective rubber skirt + roller scraper.
Options
Toothed hammer.
Cod. 009043
Breakers.
Cod. 011466
E-4 m/m wear-resistant subframe.
Cod. 014157
Mounted with reinforced stone hammer.
Cod. 015146
Retention spike.
Cod. 014513
Power TRHD 150-220 Kit.
Cod. 013818
Power TRHD Kit 240-270.
Code 019376
Gyro mower 800.
Code 013214
MODELS
015209
Working Width (mm)
1510
Dimensions
1770x1235x1068
Number of Hammers
12
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
920
Hydraulic Travel (mm)
400
Working Reach (mm)
622-1022
Number of Tines (optional)
11
015210
Working Width (mm)
1610
Dimensions
1870x1275x1108
Number of Hammers
12
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
990
Hydraulic Travel (mm)
400
Working Reach (mm)
722-1122
Number of Tines (optional)
12
015211
Working Width (mm)
1810
Dimensions
2070x1235x1068
Number of Hammers
14
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
1030
Hydraulic Travel (mm)
400
Working Reach (mm)
922-1022
Number of Tines (optional)
13
015212
Working Width (mm)
2010
Dimensions
2270x1235x1068
Number of Hammers
14
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1080
Hydraulic Travel (mm)
400
Working Reach (mm)
1122-1522
Number of Tines (optional)
14
015105
Working Width (mm)
2210
Dimensions
2470x1235x1068
Number of Hammers
16
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1140
Hydraulic Travel (mm)
400
Working Reach (mm)
1322-1722
Number of Tines (optional)
16
015213
Working Width (mm)
2410
Dimensions
2670x1235x1068
Number of Hammers
16
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540/1000
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1220
Hydraulic Travel (mm)
600
Working Reach (mm)
1207-1807
Number of Tines (optional)
17
015108
Working Width (mm)
2710
Dimensions
2970x1235x1068
Number of Hammers
18
Blades. Rotor ø (Outside)
475
Blades. Rotor ø (Inside)
195
PTO
540/1000
Power. Min/Max (HP)
100-120
Number of Belts / Type
5XPB
Weight (kg)
1340
Hydraulic Travel (mm)
600
Working Reach (mm)
1507-2107
Number of Tines (optional)
19
