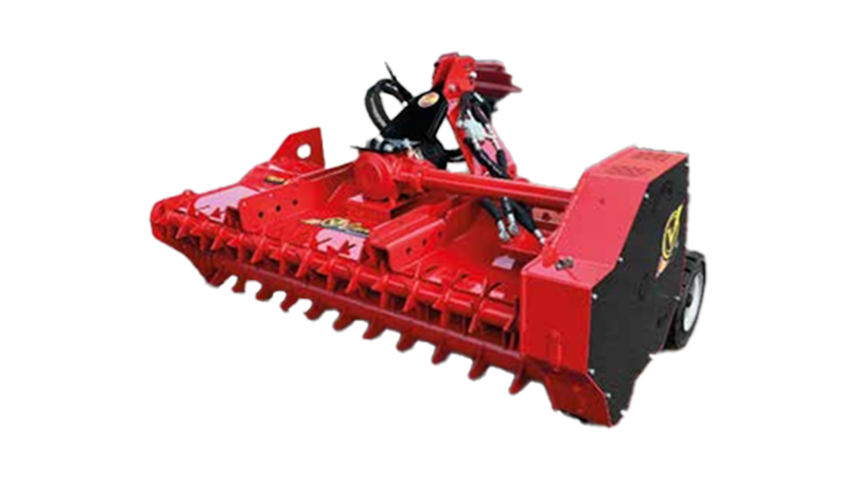

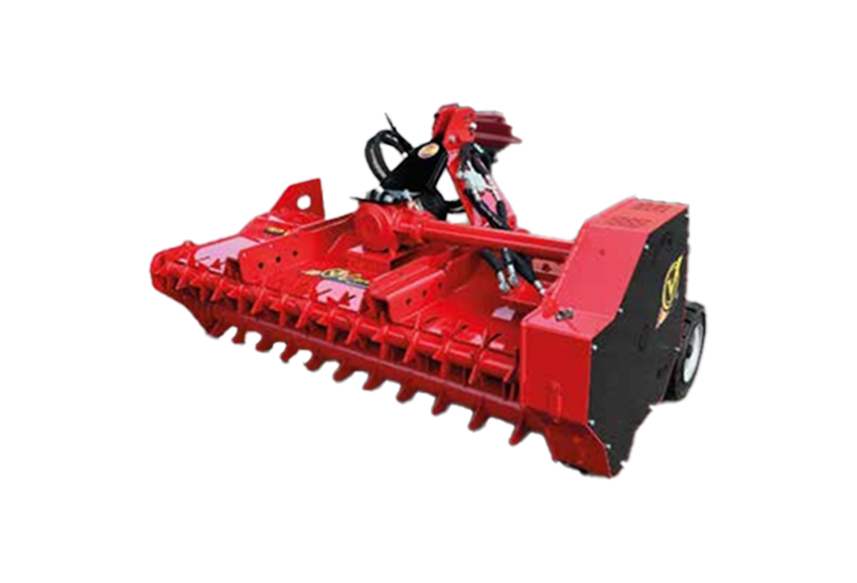

CRUSHER
Standard Equipment
Carbon steel frame.
Fixed wheels.
Crushing without sieve.
Freewheel unit with 1” 3/8 Z6 input shaft.
Semi-forestry rotor with fixed tools and M-27 screw.
Oscillating double-row roller bearings.
Type G9 transmission.
Hydraulic feeder with speed regulator.
Wear-resistant feeder blades and teeth.
Replaceable upper breaker.
1” double chain.
Chain tensioner with jam relief.
400cc hydraulic motor.
Skid plates.
Wear-resistant rear breaker and Replaceable.
Options
Blades.
Cod. 014766
Mounted with roller.
Mounted with reversible tower and double crown group.
S/C
Mounted with 18 x 7 x 8 industrial solid wheels.
Cod. 015152
Hydraulic starting aid system.
Cod. 017136
Vineyard lifting punch kit.
Cod. 018318
Nylon side pole kit.
Cod. 019120
MODELS
Code
017838
Working Width (mm)
1300
Dimensions
1725x1415x1215
Number of Blades
30
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1080
017838
Working Width (mm)
1300
Dimensions
1725x1415x1215
Number of Blades
30
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1080
Code
015577
Working Width (mm)
1300
Dimensions
1725x1415x1215
Number of Blades
30
Rotor ø (mm) A
450
Rotor ø (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1130
015577
Working Width (mm)
1300
Dimensions
1725x1415x1215
Number of Blades
30
Rotor ø (mm) A
450
Rotor ø (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1130
Code
013751
Working Width (mm)
1500
Dimensions
1925x1415x1215
Number of Blades
36
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1180
013751
Working Width (mm)
1500
Dimensions
1925x1415x1215
Number of Blades
36
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1180
Code
014110
Working Width (mm)
1500
Dimensions
1925x1415x1215
Number of Blades
36
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1230
014110
Working Width (mm)
1500
Dimensions
1925x1415x1215
Number of Blades
36
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
70-110
No. Straps / Type
5XPB
Weight (Kg)
1230
Code
013993
Working Width (mm)
1800
Dimensions
2225x1415x1215
Number of Blades
44
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1320
013993
Working Width (mm)
1800
Dimensions
2225x1415x1215
Number of Blades
44
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1320
Code
014200
Working Width (mm)
1800
Dimensions
2225x1415x1215
Number of Blades
44
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1390
014200
Working Width (mm)
1800
Dimensions
2225x1415x1215
Number of Blades
44
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1390
Code
014177
Working Width (mm)
2000
Dimensions
2425x1415x1215
Number of Blades
52
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1415
014177
Working Width (mm)
2000
Dimensions
2425x1415x1215
Number of Blades
52
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1415
Code
015172
Working Width (mm)
2000
Dimensions
2425x1415x1215
Number of Blades
52
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1505
015172
Working Width (mm)
2000
Dimensions
2425x1415x1215
Number of Blades
52
ø Outer Rotor (mm) A
450
ø Inner Rotor (mm) B
220
PTO
540/1000
Power. Min/Max(CV)
90-110
No. Straps / Type
5XPB
Weight (Kg)
1505
