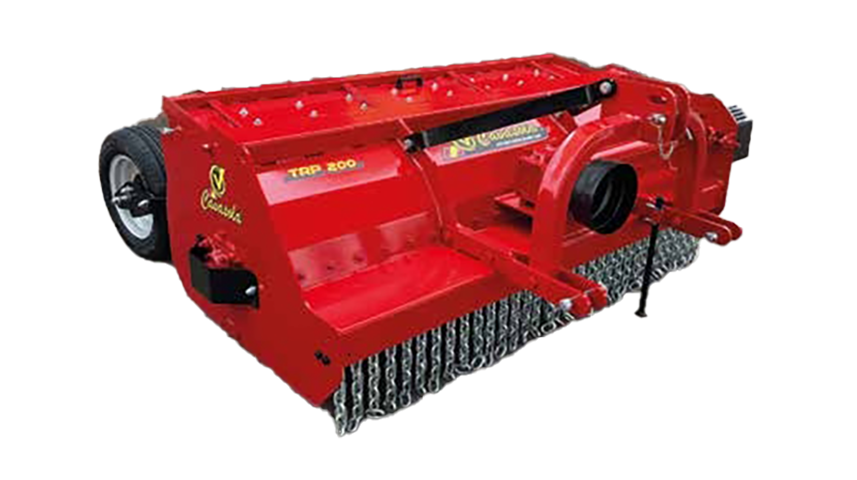

CRUSHER
Standard Equipment
Carbon steel chassis.
Front guard with chain.
Hammer or blade rotor with M-16 bolt.
Skid plates.
Type G7 and G9 transmission.
Height-adjustable tailgate.
Front support stand.
Freewheel assembly with 1” 3/8 Z6 input shaft.
Replaceable breakers.
Bearings with cast iron housing.
Station supports made of folded sheet metal.
Options
Hammer.
Cod. 018092
Blades.
Cod. 017471-2
Blade or hammer assembly.
S/C
Rear swivel wheels.
013192
Rear leveling roller.
014437
Material spreaders.
Cod. 020107
Hydraulic sideshift.
017604
Hydraulic tailgate rear.
017651
MODELS
Code
008551
Working Width (mm)
2000
Dimensions
2255x1485x990
Number of Hammers
18
Number of Blades
54
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power. Min/Max(CV)
60-90
No. Straps / Type
4XPB
Weight (Kg)
810
008551
Working Width (mm)
2000
Dimensions
2255x1485x990
Number of Hammers
18
Number of Blades
54
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power. Min/Max(CV)
60-90
No. Straps / Type
4XPB
Weight (Kg)
810
Code
013727
Working Width (mm)
2300
Dimensions
2555x1485x990
Number of Hammers
20
Number of Blades
60
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power Min/Max(CV)
70-90
No. Straps / Type
4XPB
Weight (Kg)
870
013727
Working Width (mm)
2300
Dimensions
2555x1485x990
Number of Hammers
20
Number of Blades
60
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power Min/Max(CV)
70-90
No. Straps / Type
4XPB
Weight (Kg)
870
Code
017315
Working Width (mm)
2500
Dimensions
2755x1485x990
Number of Hammers
22
Number of Blades
66
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power Min/Max(CV)
80-90
No. Straps / Type
5XPB
Weight (Kg)
930
017315
Working Width (mm)
2500
Dimensions
2755x1485x990
Number of Hammers
22
Number of Blades
66
Blades. Rotor ø (Outside)
652
Blades. Rotor ø (Inside)
230
PTO
540
Power Min/Max(CV)
80-90
No. Straps / Type
5XPB
Weight (Kg)
930
