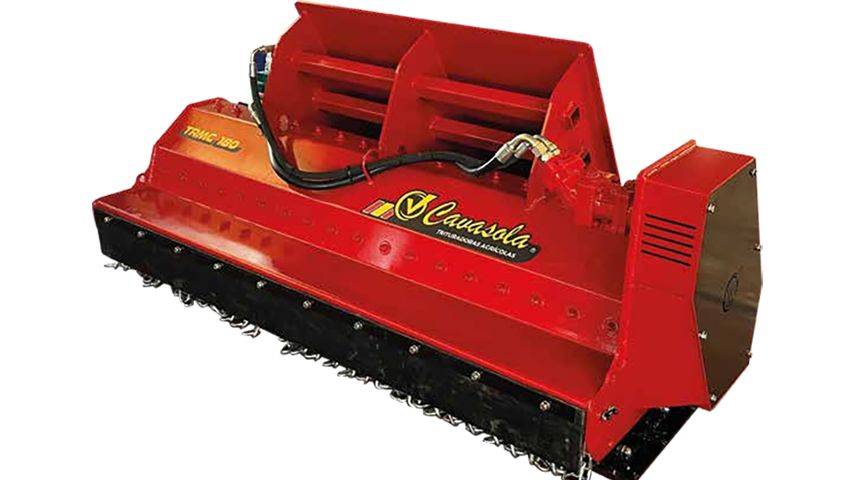

CRUSHER
Standard Equipment
Carbon steel chassis.
Universal hitch for skid steer loader.
Rear roller.
Blade rotor with M-20 bolts.
Double chain front guard.
Triple row of replaceable breakers.
Skid plates.
Driven by hydraulic piston motor.
Rear roller scraper.
3 mm carbon steel inner subframe.
Options
Hammer.
Cod. 012931
Skid.
Drive.
Breakers.
Cod. 011466
Rubber front skirt.
MODELS
Code
006949
Work Width (mm)
1645
Dimensions
1860x955x755
Hammers
14
Blades
42
ø Rotor (Outer)
425
ø Rotor (Inner)
152
R.P.M. Rotor
2000
Litres/min
75-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
630
006949
Work Width (mm)
1645
Dimensions
1860x955x755
Hammers
14
Blades
42
ø Rotor (Outer)
425
ø Rotor (Inner)
152
R.P.M. Rotor
2000
Litres/min
75-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
630
Code
006658
Work Width (mm)
1845
Dimensions
2060x955x755
Hammers
16
Blades
48
ø Rotor (Outer)
425
ø Rotor (Inner)
152
R.P.M. Rotor
2000
Litres/min
80-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
675
006658
Work Width (mm)
1845
Dimensions
2060x955x755
Hammers
16
Blades
48
ø Rotor (Outer)
425
ø Rotor (Inner)
152
R.P.M. Rotor
2000
Litres/min
80-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
675
Code
0066950
Working Width (mm)
2045
Dimensions
2260x955x755
Hammers
18
Blades
54
Rotor Diameter (Outer)
425
Rotor Diameter (Inner)
152
R.P.M. Rotor
2000
Litres/min
80-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
730
0066950
Working Width (mm)
2045
Dimensions
2260x955x755
Hammers
18
Blades
54
Rotor Diameter (Outer)
425
Rotor Diameter (Inner)
152
R.P.M. Rotor
2000
Litres/min
80-125
Pressure (Bar)
180-280
No. Straps / Type
4XPB
Weight (Kg)
730
