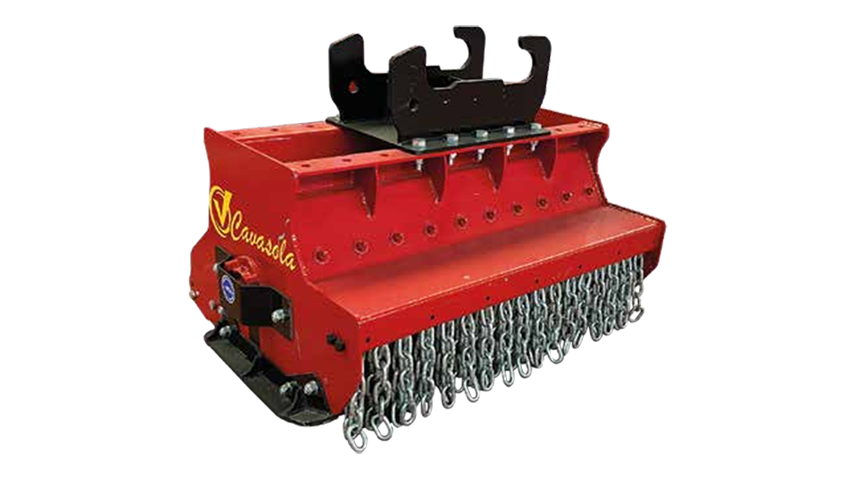

CRUSHER
Standard Equipment
Carbon steel chassis.
Bearing support with cast iron housing.
Group 3 hydraulic gear motor.
Double inlet protection chain.
Rear roller.
Skid plates.
Smooth hammer rotor with M-20 screw.
Replaceable breakers.
Rear rubber skirt.
3mm carbon steel inner subframe.
Fairing protection for hydraulic motor.
Options
Smooth hammer.
Cod. 012931
Rubber front guard.
S/C
Customized excavator hitch head.
Cod. 017590
Obstacle-clearing spike system.
Cod. 016567
Forestry rotor + steel bushing assembly.
Cod. 016546
Assembly with blades.
S/C
MODELS
Code
014304
Work Width (mm)
900
Dimensions
1110x970x610
No. of Hammers
10
Blades.
30
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
50-60
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
315
014304
Work Width (mm)
900
Dimensions
1110x970x610
No. of Hammers
10
Blades.
30
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
50-60
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
315
Code
014305
Work Width (mm)
1000
Dimensions
1210x970x610
No. of Hammers
12
Blades.
36
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
60-70
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
335
014305
Work Width (mm)
1000
Dimensions
1210x970x610
No. of Hammers
12
Blades.
36
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
60-70
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
335
Code
013110
Work Width (mm)
1200
Dimensions
1410x970x610
No. of Hammers
14
Blades.
42
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
60-70
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
350
013110
Work Width (mm)
1200
Dimensions
1410x970x610
No. of Hammers
14
Blades.
42
ø Rotor (mm) A
410
ø Rotor (mm) B
140
R.P.M. Rotor
2000
Liters
60-70
Pressure
175/250
No. Straps / Type
3xPB
Weight (Kg)
350
