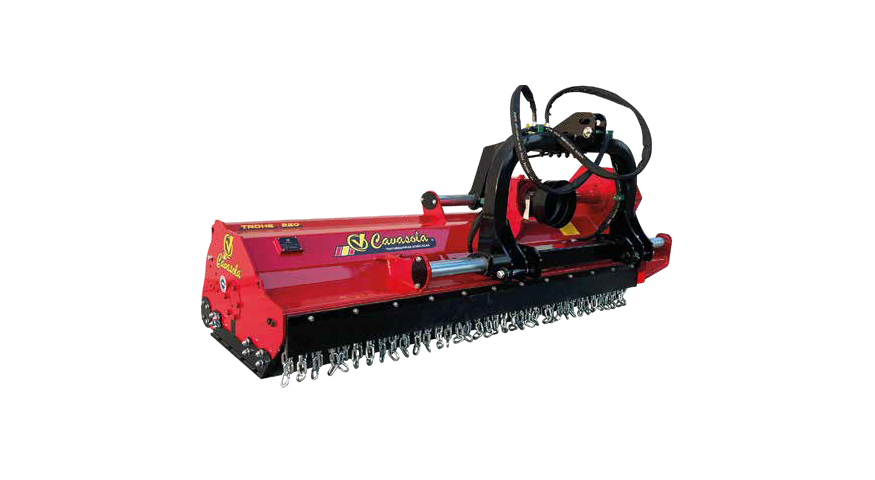

CRUSHER
Standard Equipment
Carbon steel chassis.
Hydraulic movable tower.
Manually adjustable rear guard.
Rear roller.
Type G7 and G9 transmission.
Skid plates.
Toothed hammer rotor with M-20 screws.
Unit with freewheel and 1” 3/8” Z6 and 3/4” Z6 input shaft.
Belt tensioner.
Double-row oscillating roller bearings.
Sealed hub with roller grease nipple.
Opciones
Kit Plus (D.H.) 600mm.
Cod. 019257
Girosegadora D800.
Cod. 013214
Enfriador de aceite + girosegadora + instalación.
Cod. 019764
Martillo.
Cod. 013569
MODELS
Code
017145
Working Width (mm)
1510
Dimensions
1738x1105x1115
Number of Hammers
12
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
720
Hydraulic Travel (mm)
400
Working Reach (mm)
622-1022
017145
Working Width (mm)
1510
Dimensions
1738x1105x1115
Number of Hammers
12
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
720
Hydraulic Travel (mm)
400
Working Reach (mm)
622-1022
Code
017146
Working Width (mm)
1610
Dimensions
1838x1105x1115
Number of Hammers
12
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
750
Hydraulic Travel (mm)
400
Working Reach (mm)
722-1122
017146
Working Width (mm)
1610
Dimensions
1838x1105x1115
Number of Hammers
12
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
60-100
Number of Belts / Type
4XPB
Weight (kg)
750
Hydraulic Travel (mm)
400
Working Reach (mm)
722-1122
Code
017147
Working Width (mm)
1800
Dimensions
2038x1105x1115
Number of Hammers
14
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
800
Hydraulic Travel (mm)
400
Working Reach (mm)
922-1322
017147
Working Width (mm)
1800
Dimensions
2038x1105x1115
Number of Hammers
14
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
800
Hydraulic Travel (mm)
400
Working Reach (mm)
922-1322
Code
017148
Working Width (mm)
2010
Dimensions
2238x1105x1115
Number of Hammers
14
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
860
Hydraulic Travel (mm)
400
Working Reach (mm)
1122-1522
017148
Working Width (mm)
2010
Dimensions
2238x1105x1115
Number of Hammers
14
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
860
Hydraulic Travel (mm)
400
Working Reach (mm)
1122-1522
Code
016934
Working Width (mm)
2210
Dimensions
2438x1105x1115
Number of Hammers
16
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
920
Hydraulic Travel (mm)
400
Working Reach (mm)
1132-1722
016934
Working Width (mm)
2210
Dimensions
2438x1105x1115
Number of Hammers
16
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
920
Hydraulic Travel (mm)
400
Working Reach (mm)
1132-1722
Code
017149
Working Width (mm)
2410
Dimensions
2638x1105x1115
Number of Hammers
24
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
980
Hydraulic Travel (mm)
600
Working Reach (mm)
1207-1807
017149
Working Width (mm)
2410
Dimensions
2638x1105x1115
Number of Hammers
24
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
980
Hydraulic Travel (mm)
600
Working Reach (mm)
1207-1807
Code
017994
Working Width (mm)
2510
Dimensions
2738x1105x1115
Number of Hammers
24
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
90-120
Number of Belts / Type
5XPB
Weight (kg)
1050
Hydraulic Travel (mm)
600
Working Reach (mm)
1307-1907
017994
Working Width (mm)
2510
Dimensions
2738x1105x1115
Number of Hammers
24
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
90-120
Number of Belts / Type
5XPB
Weight (kg)
1050
Hydraulic Travel (mm)
600
Working Reach (mm)
1307-1907
Code
017150
Working Width (mm)
2710
Dimensions
2938x1105x1115
Number of Hammers
28
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
100-120
Number of Belts / Type
5XPB
Weight (kg)
1060
Hydraulic Travel (mm)
600
Working Reach (mm)
1507-2107
017150
Working Width (mm)
2710
Dimensions
2938x1105x1115
Number of Hammers
28
Blades. Rotor ø (A)
473
Blades. Rotor ø (B)
195
PTO
540/100
Power. Min/Max (HP)
100-120
Number of Belts / Type
5XPB
Weight (kg)
1060
Hydraulic Travel (mm)
600
Working Reach (mm)
1507-2107
