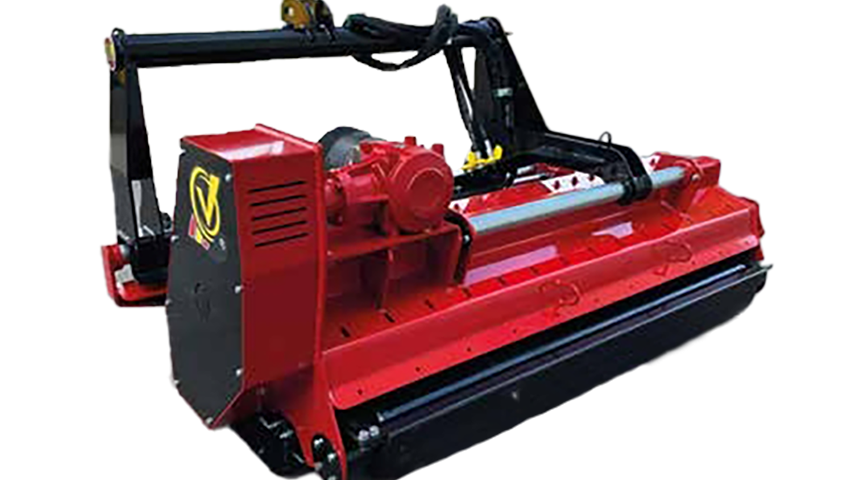

CRUSHER
Standard Equipment
Carbon steel chassis.
Hydraulic super-sliding tower.
Front guard with chain and rubber.
Rear roller.
Skid plates.
Reinforced hammers with M-20 bolts.
G7 and G9 constant velocity transmission.
Freewheel assembly with 1" 3/4 Z6 input shaft.
Replaceable breakers.
Belt tensioner.
Double-row oscillating roller bearings.
4mm carbon steel subframe.
Sealed bushing with roller grease nipple.
Rear roller scraper.
Options
Reinforced hammer.
Cod. 010897
Belt tensioner.
Retention spike.
Cod. 014513
E-4 mm wear-resistant subframe.
Cod. 014157
Rotating control wheel.
Cod. 013173
MODELS
Code
015645
Working Width (mm)
2070
Dimensions
2070x1165x1178
Number of Hammers
16
Rotor Diameter (Outer)
455
Rotor Diameter (Inner)
180
PTO (rpm)
540/1000
Power Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
1050
Hydraulic Travel (mm)
900
Working Reach (mm)
1105-2005
Number of Tines
13
015645
Working Width (mm)
2070
Dimensions
2070x1165x1178
Number of Hammers
16
Rotor Diameter (Outer)
455
Rotor Diameter (Inner)
180
PTO (rpm)
540/1000
Power Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
1050
Hydraulic Travel (mm)
900
Working Reach (mm)
1105-2005
Number of Tines
13
Code
015856
Working Width (mm)
2270
Dimensions
2270x1160x1178
Number of Hammers
18
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
1110
Hydraulic Travel (mm)
900
Working Reach (mm)
1305-2205
Number of Tines
14
015856
Working Width (mm)
2270
Dimensions
2270x1160x1178
Number of Hammers
18
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
70-120
Number of Belts / Type
5XPB
Weight (kg)
1110
Hydraulic Travel (mm)
900
Working Reach (mm)
1305-2205
Number of Tines
14
Code
015659
Working Width (mm)
2470
Dimensions
2470x1160x1178
Number of Hammers
20
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1160
Hydraulic Travel (mm)
900
Working Reach (mm)
1505-2405
Number of Tines
16
015659
Working Width (mm)
2470
Dimensions
2470x1160x1178
Number of Hammers
20
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1160
Hydraulic Travel (mm)
900
Working Reach (mm)
1505-2405
Number of Tines
16
Code
015827
Working Width (mm)
2670
Dimensions
2670x1165x1178
Number of Hammers
24
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1225
Hydraulic Travel (mm)
900
Working Reach (mm)
1705-2605
Number of Tines
17
015827
Working Width (mm)
2670
Dimensions
2670x1165x1178
Number of Hammers
24
Rotor ø (Outside)
455
Rotor ø (Inside)
180
PTO
540/1000
Power. Min/Max (HP)
80-120
Number of Belts / Type
5XPB
Weight (kg)
1225
Hydraulic Travel (mm)
900
Working Reach (mm)
1705-2605
Number of Tines
17
