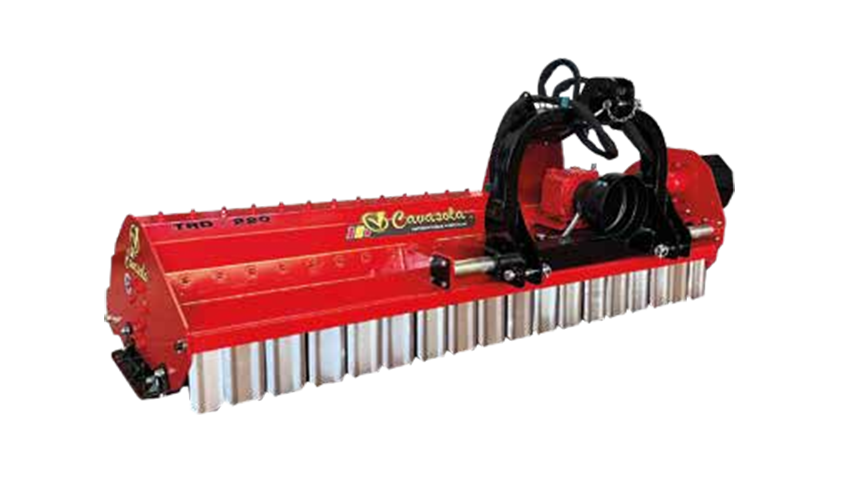

CRUSHER
Standard Equipment
Carbon steel chassis.
Hydraulic movable tower.
Sheet metal front splash guard.
Rear roller.
Type G7 transmission.
Skid plates.
Hammer rotor with M-20 screw.
Unit with freewheel and 1” 3/8 Z6 input shaft.
Double row oscillating roller bearings.
Two rows of replaceable counterhammers.
3 mm inner subframe with carbon steel mantle.
Scraper on rear roller.
Options
Smooth hammer.
Cod. 012931
Breakers.
Cod. 011466
Swivel wheel kits.
Cod. 014127
Blade mounting.
Retention pick.
MODELS
Code
018846
Working Width (mm)
1445
Dimensions
1675x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
40-90
Number of Belts / Type
3XPB
Weight (kg)
520
Hydraulic Travel (mm)
400
Working Reach (mm)
570-970
Number of Tines (optional)
11
018846
Working Width (mm)
1445
Dimensions
1675x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
40-90
Number of Belts / Type
3XPB
Weight (kg)
520
Hydraulic Travel (mm)
400
Working Reach (mm)
570-970
Number of Tines (optional)
11
Code
014118
Working Width (mm)
1545
Dimensions
1775x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
50-90
Number of Belts / Type
3XPB
Weight (kg)
550
Hydraulic Travel (mm)
400
Working Reach (mm)
570-1070
Number of Tines (optional)
11
014118
Working Width (mm)
1545
Dimensions
1775x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
50-90
Number of Belts / Type
3XPB
Weight (kg)
550
Hydraulic Travel (mm)
400
Working Reach (mm)
570-1070
Number of Tines (optional)
11
Code
013047
Working Width (mm)
1645
Dimensions
1875x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
50-90
Number of Belts / Type
4XPB
Weight (kg)
590
Hydraulic Travel (mm)
400
Working Reach (mm)
770-1070
Number of Tines (optional)
12
013047
Working Width (mm)
1645
Dimensions
1875x1170x990
Number of Hammers
14
Blades.
42
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
50-90
Number of Belts / Type
4XPB
Weight (kg)
590
Hydraulic Travel (mm)
400
Working Reach (mm)
770-1070
Number of Tines (optional)
12
Code
012968
Working Width (mm)
1845
Dimensions
2075x1170x990
Number of Hammers
16
Blades.
48
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
60-90
Number of Belts / Type
4XPB
Weight (kg)
660
Hydraulic Travel (mm)
400
Working Reach (mm)
970-1370
Number of Tines (optional)
14
012968
Working Width (mm)
1845
Dimensions
2075x1170x990
Number of Hammers
16
Blades.
48
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
60-90
Number of Belts / Type
4XPB
Weight (kg)
660
Hydraulic Travel (mm)
400
Working Reach (mm)
970-1370
Number of Tines (optional)
14
Code
012967
Working Width (mm)
2045
Dimensions
2275x1170x990
Number of Hammers
18
Blades.
54
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
70-90
Number of Belts / Type
4XPB
Weight (kg)
700
Hydraulic Travel (mm)
400
Working Reach (mm)
1170-1570
Number of Tines (optional)
15
012967
Working Width (mm)
2045
Dimensions
2275x1170x990
Number of Hammers
18
Blades.
54
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
70-90
Number of Belts / Type
4XPB
Weight (kg)
700
Hydraulic Travel (mm)
400
Working Reach (mm)
1170-1570
Number of Tines (optional)
15
Code
012942
Working Width (mm)
2245
Dimensions
2475x1170x990
Number of Hammers
20
Blades.
60
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
75-90
Number of Belts / Type
4XPB
Weight (kg)
740
Hydraulic Travel (mm)
400
Working Reach (mm)
1370-1770
Number of Tines (optional)
17
012942
Working Width (mm)
2245
Dimensions
2475x1170x990
Number of Hammers
20
Blades.
60
Rotor Diameter (Outer A)
445
Rotor Diameter (Inner B)
170
PTO (rpm)
540
Power. Min/Max (HP)
75-90
Number of Belts / Type
4XPB
Weight (kg)
740
Hydraulic Travel (mm)
400
Working Reach (mm)
1370-1770
Number of Tines (optional)
17
