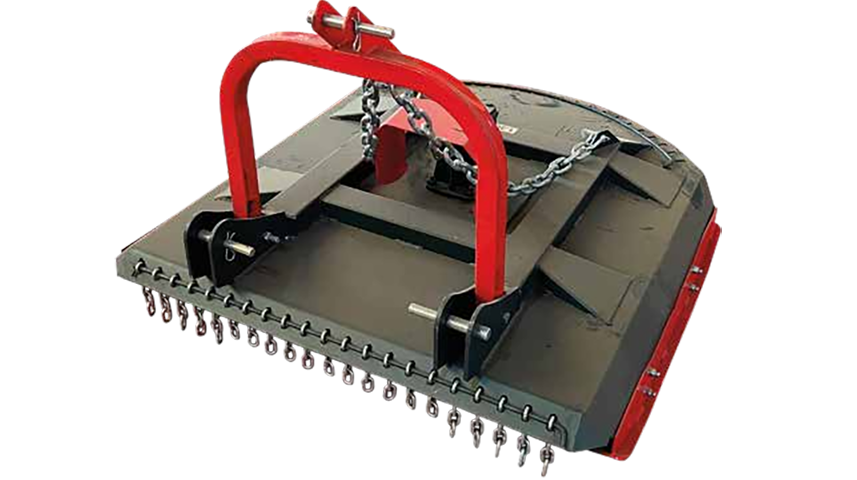

CHAIN BRUSH CUTTER
Standard Equipment
5mm sheet metal chassis.
40 hp engine.
12 mm chainrings.
13 mm rotor with two chains.
Fuse transmission.
Height-adjustable skids.
Options
60 HP Group.
Cod. 015165
Clutch transmission.
Cod. 015164
Hydraulic shifter.
Cod. 015158
MODELS
Code
014975
Working Width (mm)
900
Weight (kg)
140
Power (hp)
15-20
PTO (rpm)
540
014975
Working Width (mm)
900
Weight (kg)
140
Power (hp)
15-20
PTO (rpm)
540
Code
014976
Working Width (mm)
1000
Weight (kg)
155
Power (hp)
15-20
PTO (rpm)
540
014976
Working Width (mm)
1000
Weight (kg)
155
Power (hp)
15-20
PTO (rpm)
540
Code
014977
Working Width (mm)
1100
Weight (kg)
170
Power (hp)
20-30
PTO (rpm)
540
014977
Working Width (mm)
1100
Weight (kg)
170
Power (hp)
20-30
PTO (rpm)
540
Code
014978
Working Width (mm)
1200
Weight (kg)
185
Power (hp)
20-30
PTO (rpm)
540
014978
Working Width (mm)
1200
Weight (kg)
185
Power (hp)
20-30
PTO (rpm)
540
Code
014979
Working Width (mm)
1300
Weight (kg)
225
Power (hp)
25-40
PTO (rpm)
540
014979
Working Width (mm)
1300
Weight (kg)
225
Power (hp)
25-40
PTO (rpm)
540
Code
015866
Working Width (mm)
1400
Weight (kg)
240
Power (hp)
30-40
PTO (rpm)
540
015866
Working Width (mm)
1400
Weight (kg)
240
Power (hp)
30-40
PTO (rpm)
540
